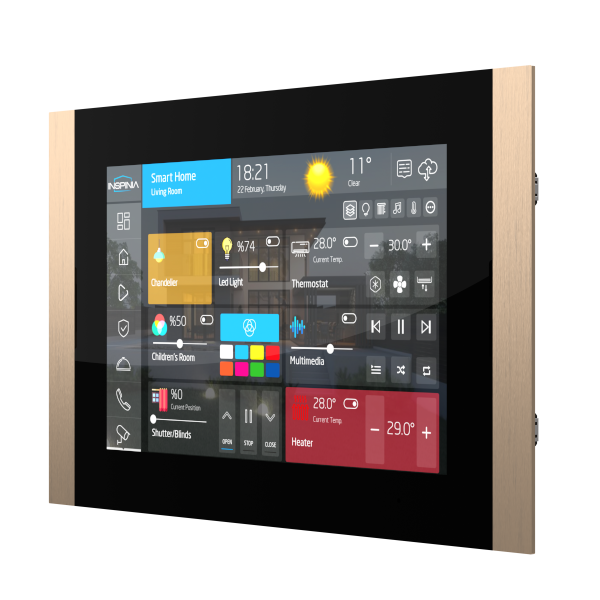

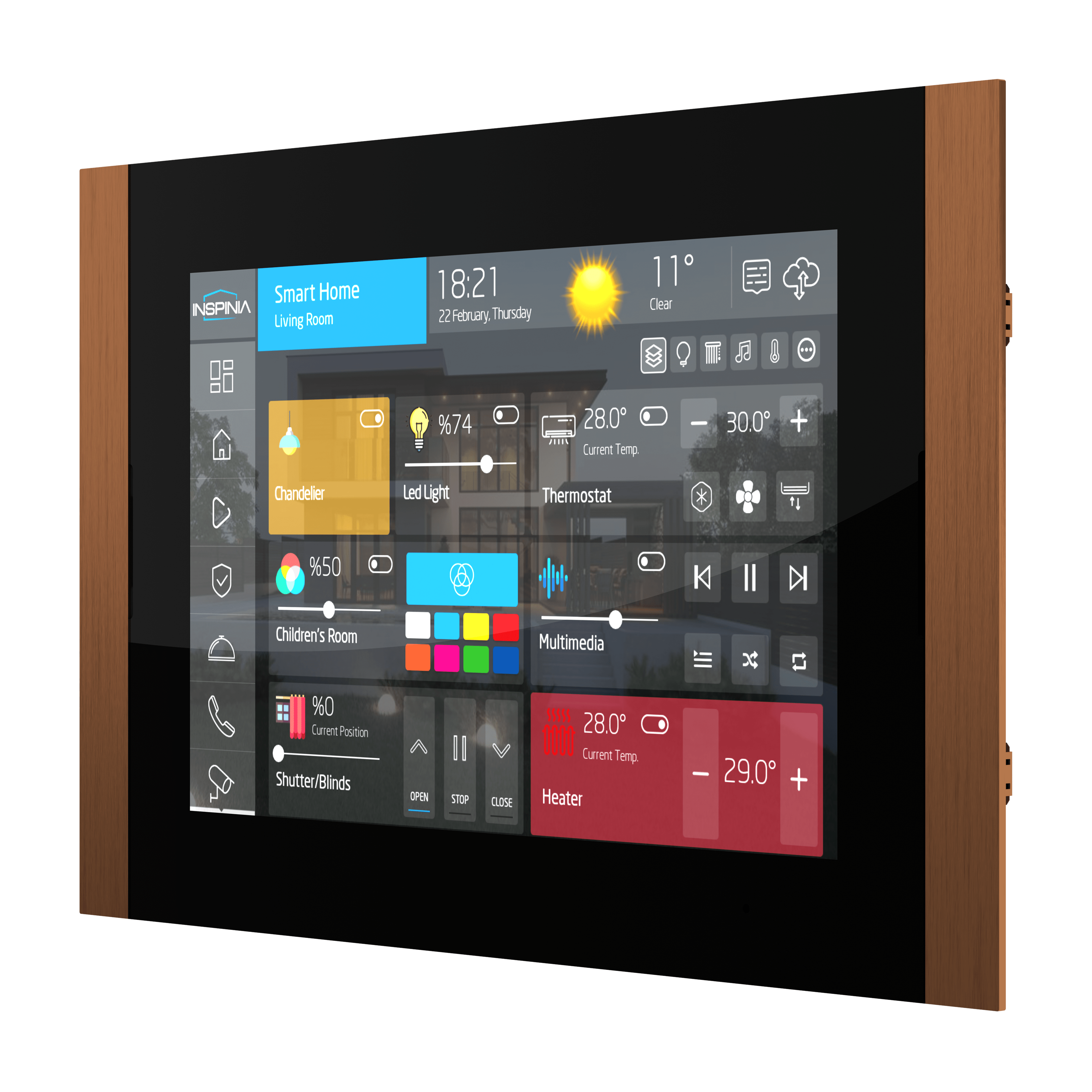

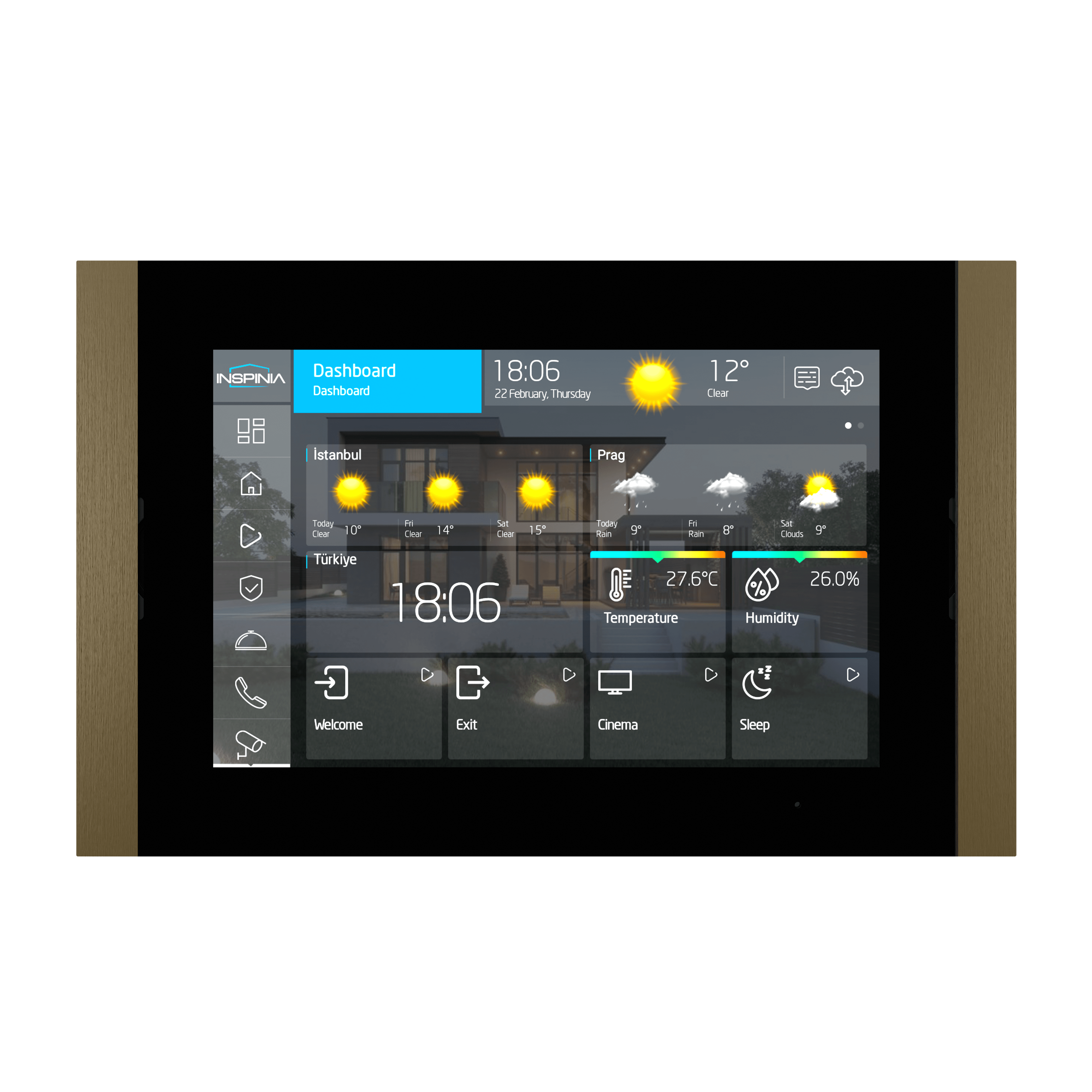

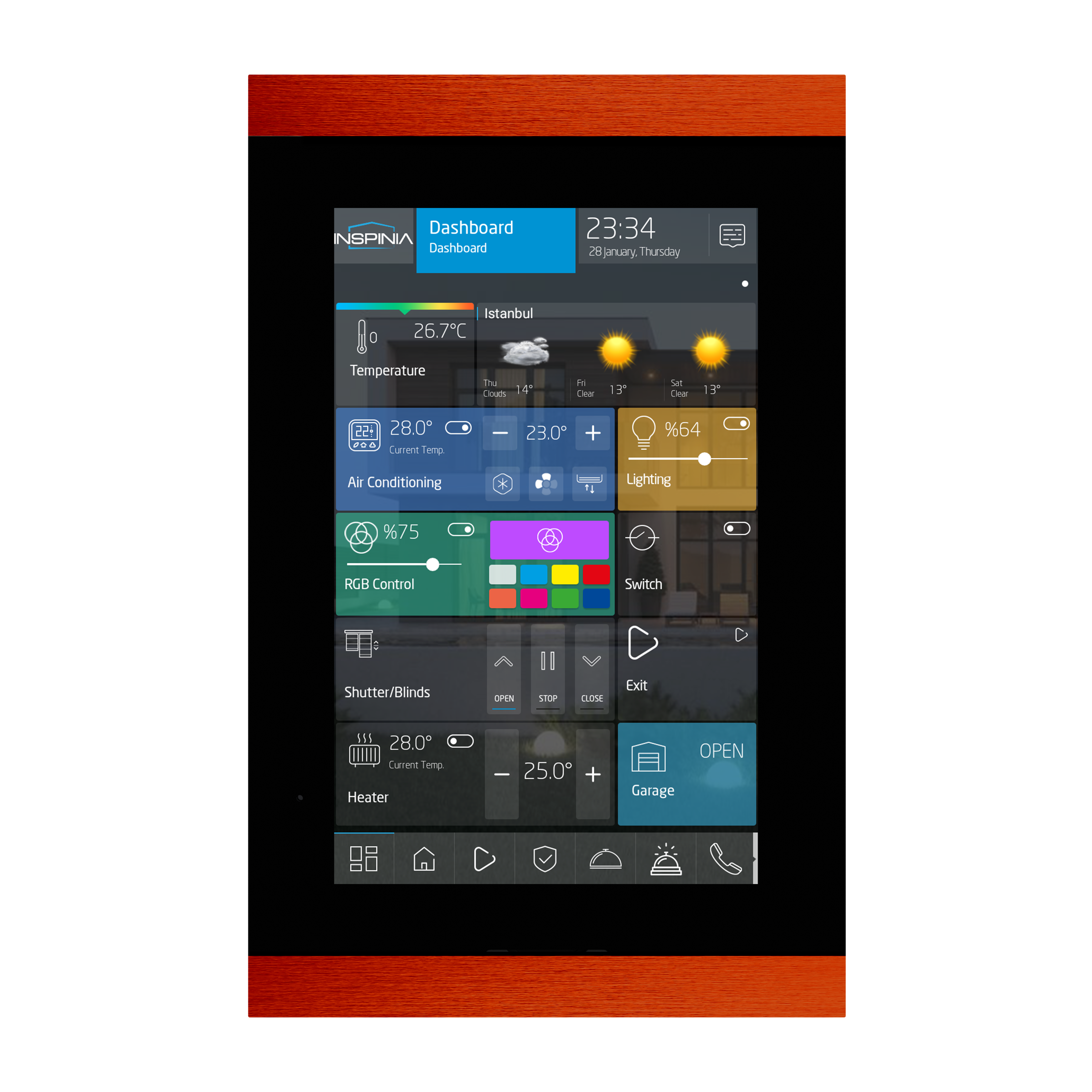

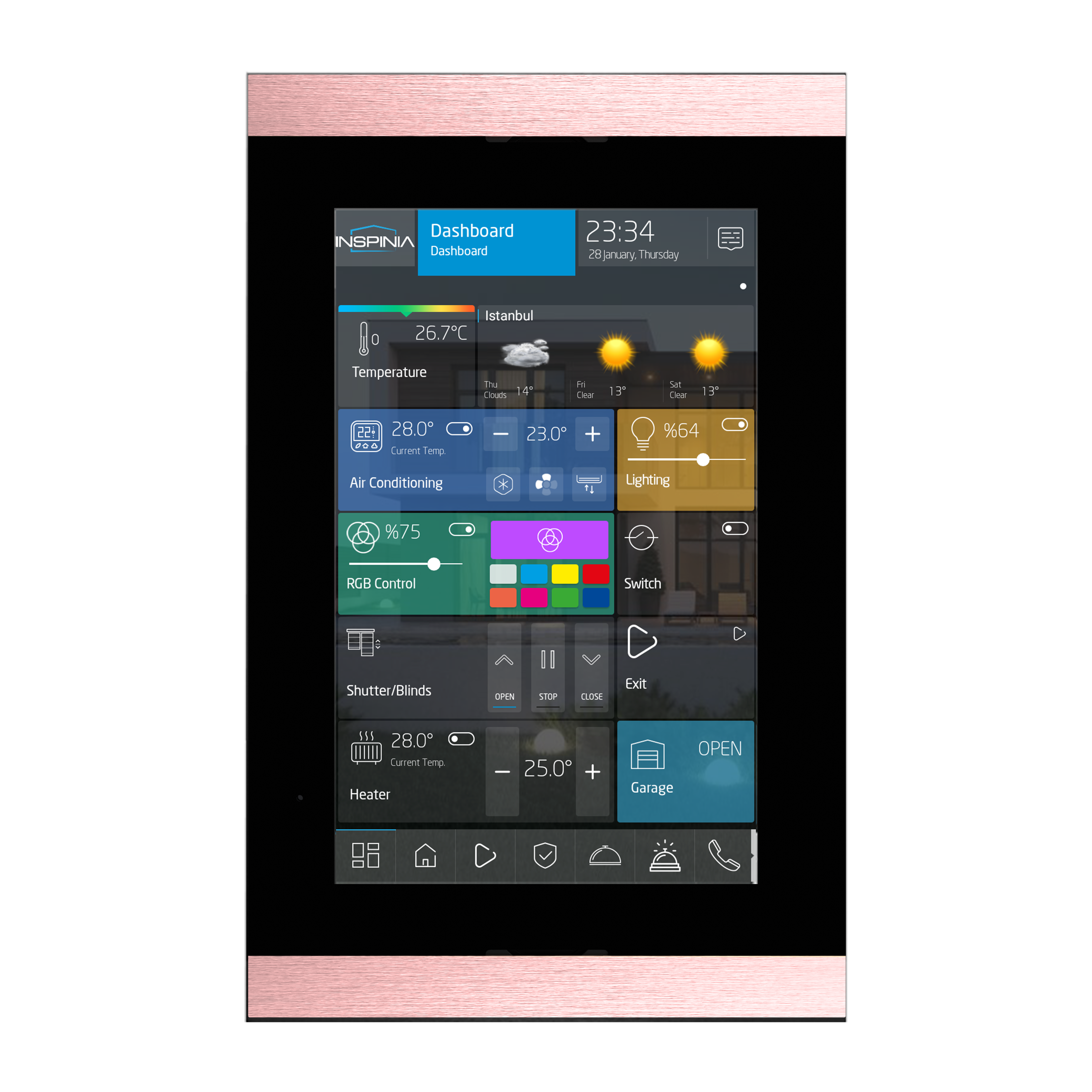

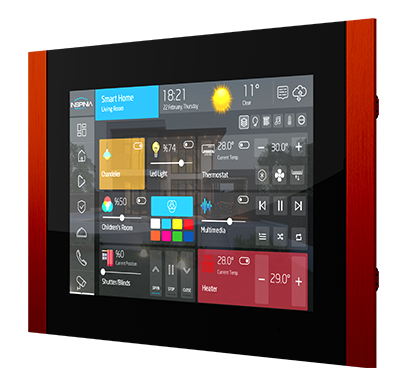

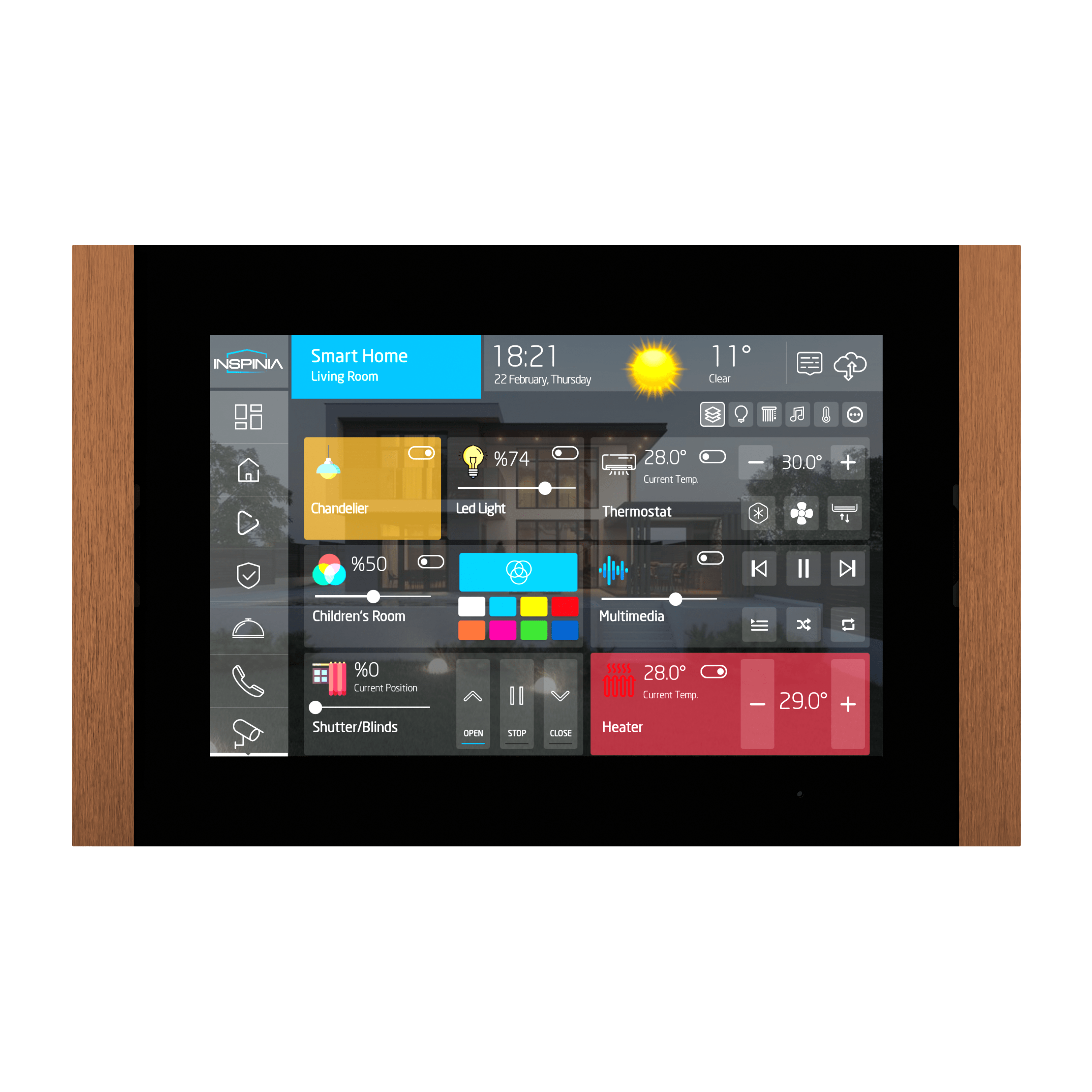

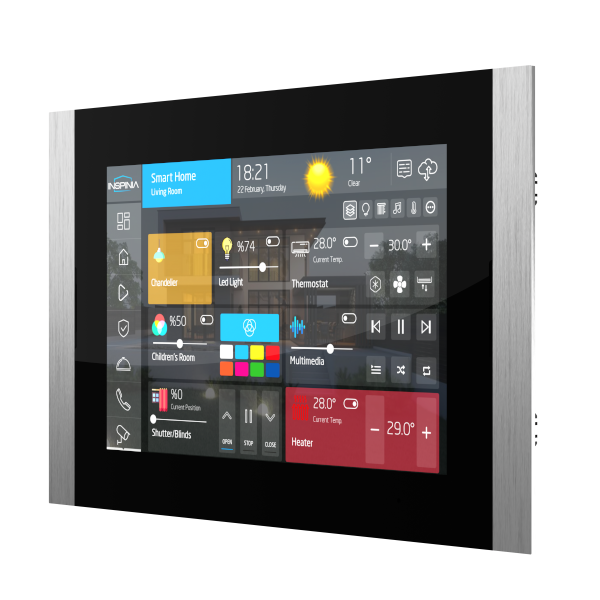

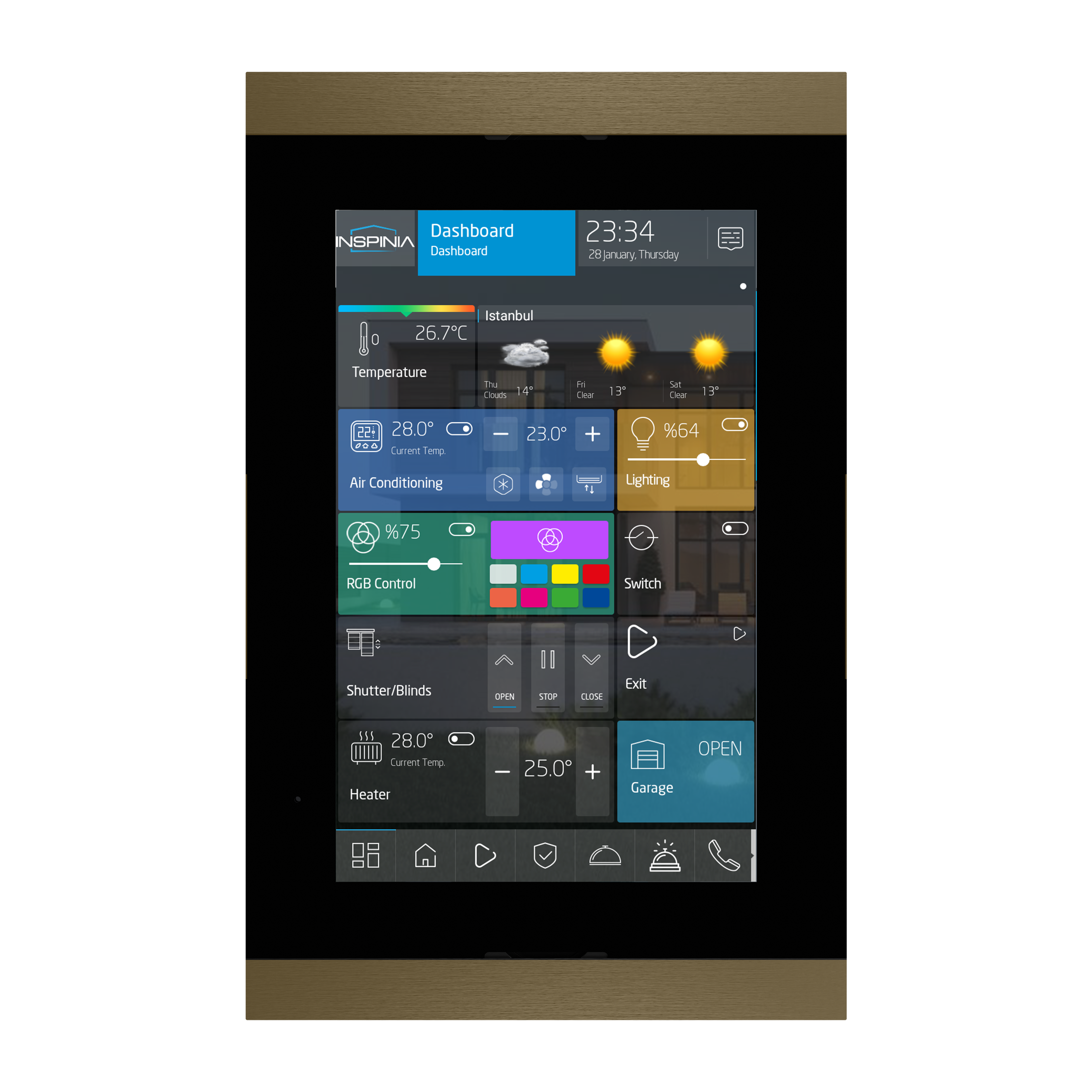

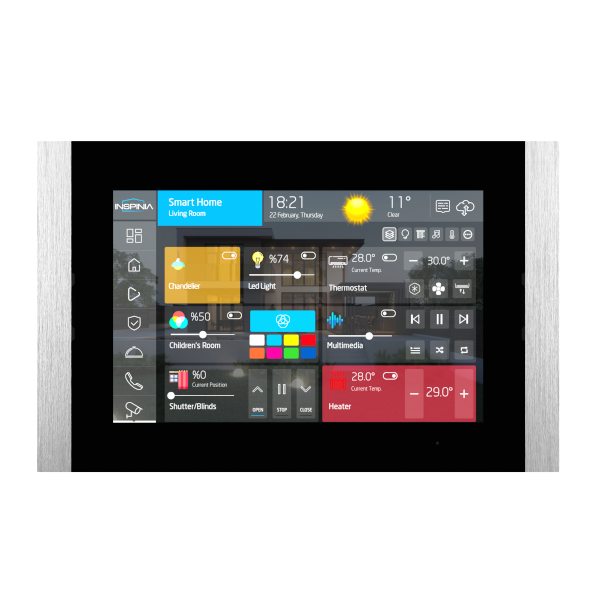

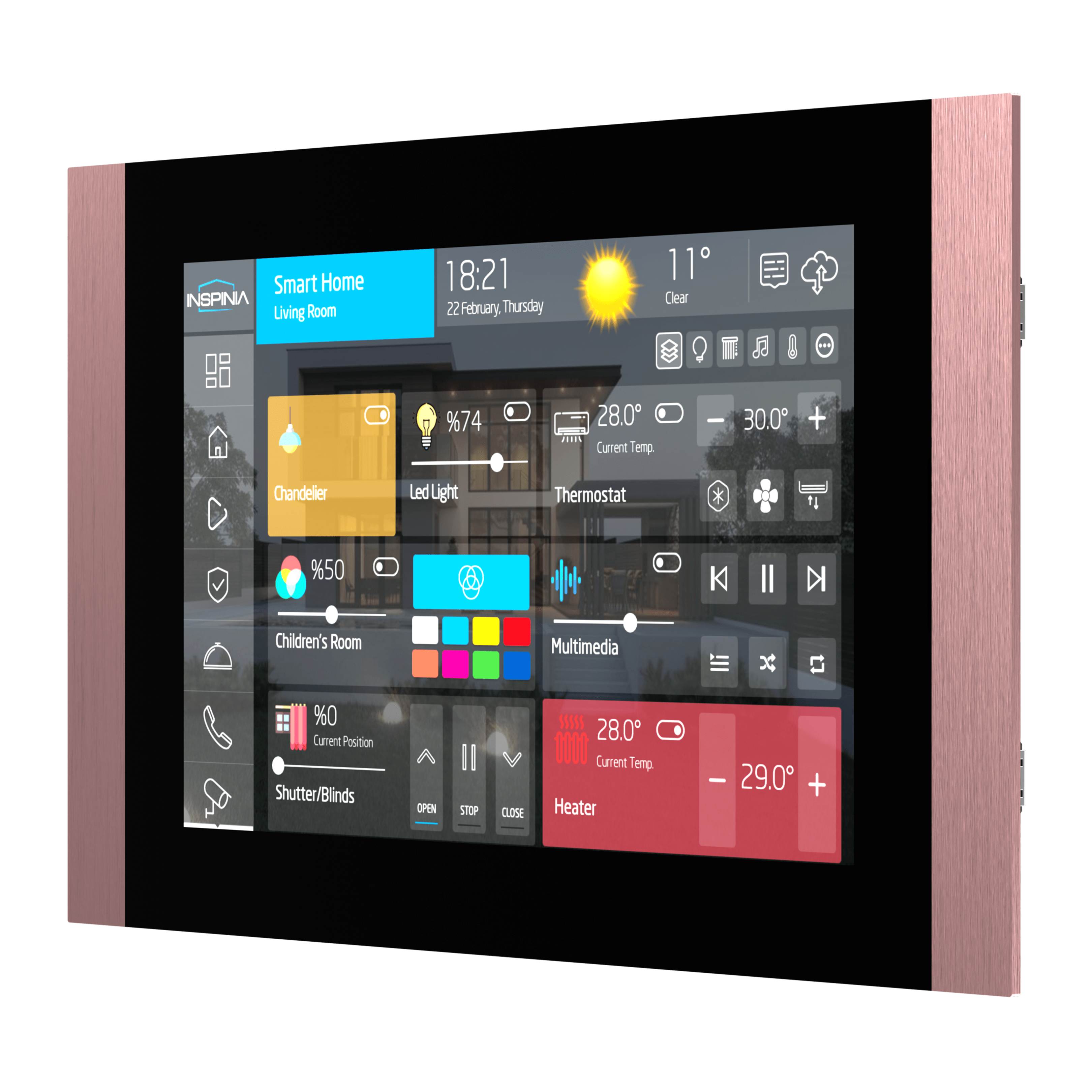

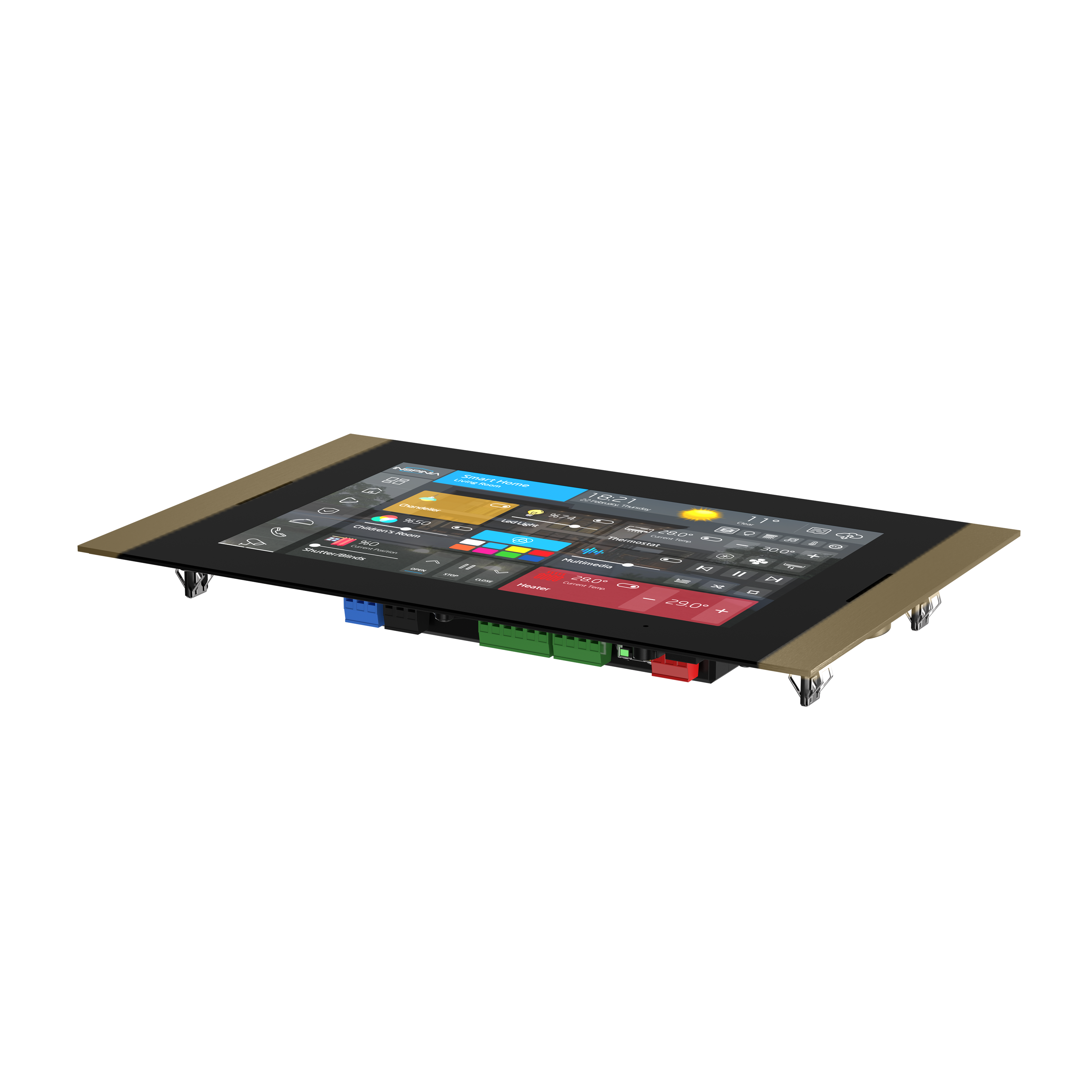

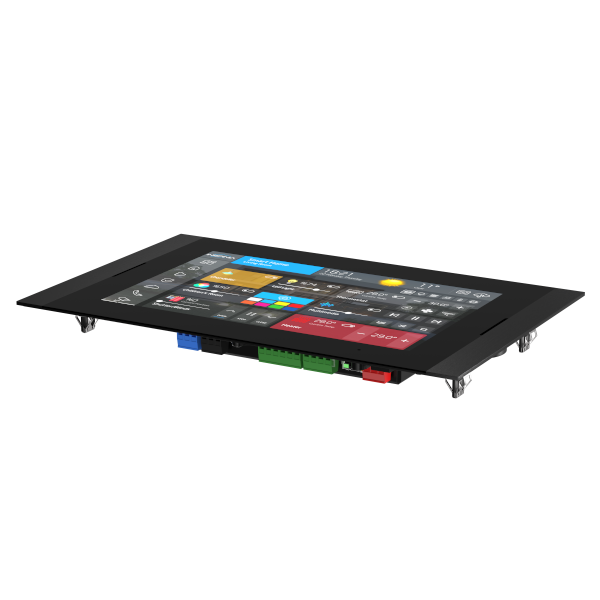

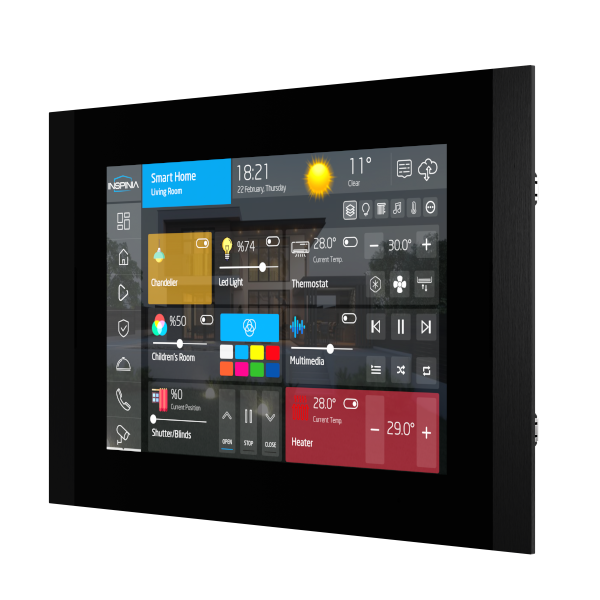

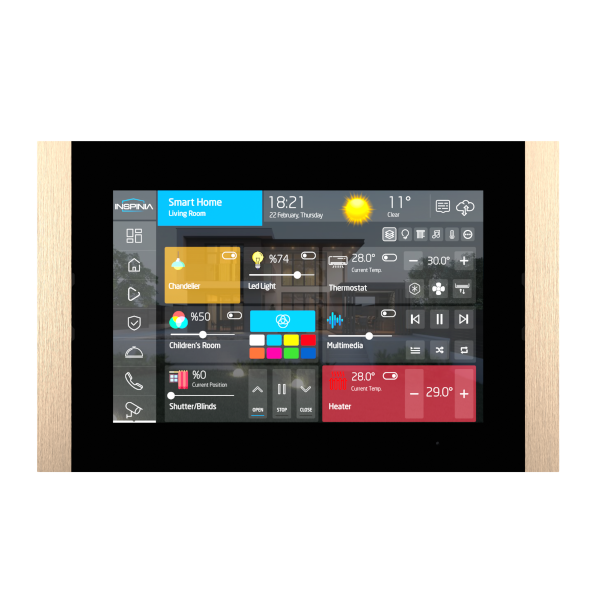

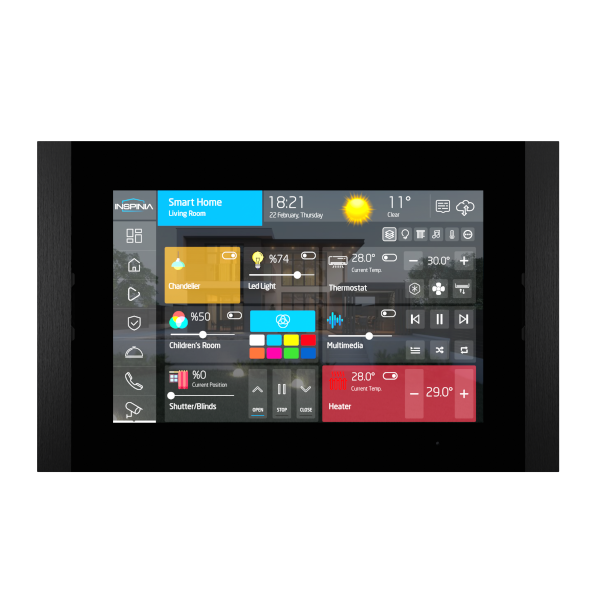

INSPINIA 10 SQ
TOUCH PANEL

Enhance your smart home and building systems with the Inspinia 10'' SQ Touch Panel. This premium touchscreen offers intuitive control and
seamless integration with automation platforms, delivering advanced
functionality and convenience.

Request Price Quote

Key Benefits

Easy Home Management

The 10-inch touchscreen makes it simple and intuitive to control various smart home features.

Reliable Performance

Ensures smooth operation, so your home automation responds quickly and efficiently.

Flexible Compatibility

Works seamlessly with different smart home systems, making it easy to connect and manage all your devices.

Prestige Control Panels —Craftsmanship Meets High-End Technology

Experience unparalleled luxury and control with the Inspinia 10'' SQ Touch Panel. Designed for those who demand both elegance and performance, this premium touchscreen offers intuitive operation and seamless integration with smart home and building systems, bringing refined sophistication to modern automation

Icon: 10SQ touch panel

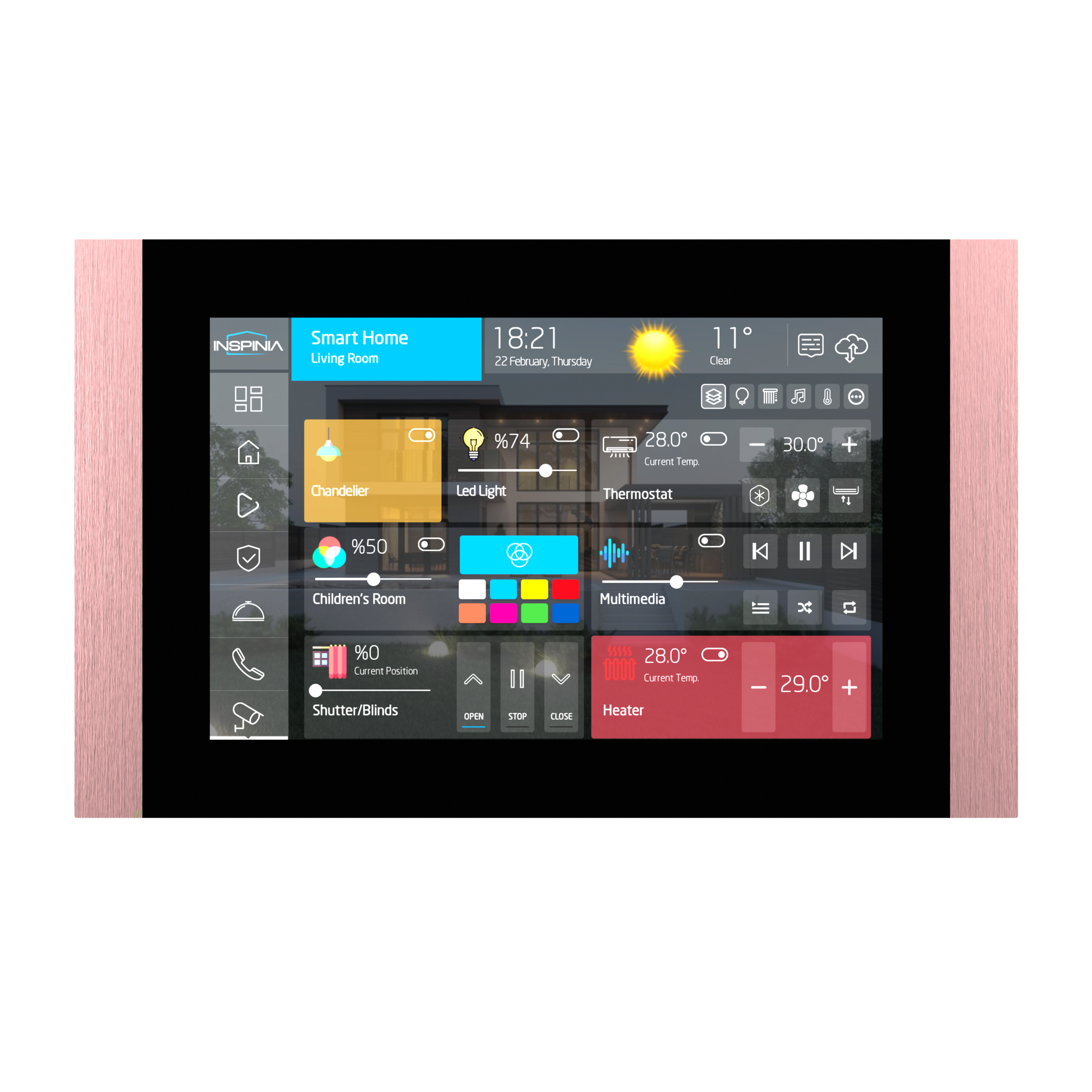

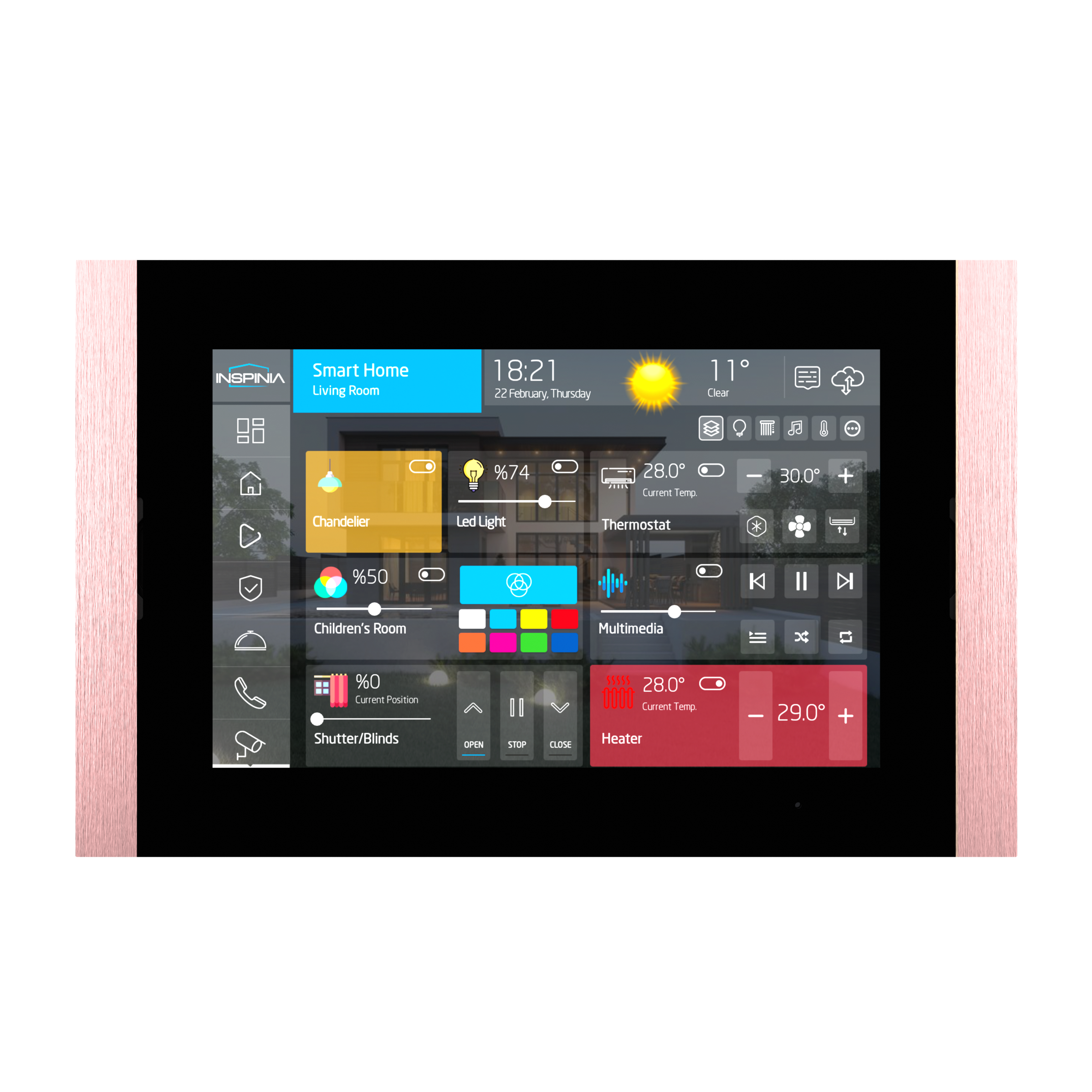

10-inch IPS Display

The large 10-inch IPS touchscreen offers a clear, vibrant interface, making navigation and control of your home automation system easy and intuitive. The high resolution ensures sharp visuals, enhancing the overall user experience with responsive and smooth touch interactions.

Quad-Core Processor

Delivers fast, reliable performance, ensuring smooth and efficient operation for all your smart home controls and tasks.

Integration with Google HomeKit

Seamlessly compatible with Google Home, the INSPINIA 10'' SQ Touch Panel enhances smart home integration, allowing effortless voice control and connectivity with Google’s platform.

Extensive connectivity icon

Extensive Connectivity

Equipped with LAN, digital inputs/outputs, and optional interfaces like KNX TP and Zigbee 3.0, providing broad compatibility and seamless integration with various smart home systems.

Icon: built-in sensors

Built-in Sensors

Continuously monitor temperature and humidity levels to ensure optimal room comfort, automatically adjusting settings for a balanced and comfortable environment.

Integrated Audio System

Features built-in speakers and a microphone input, enhancing audio functionality for clear communication and seamless interaction within your smart home system.

Product Specifications

Hardware / Software
Plus icon
Quad-Core 1.2 GHz / 1GB DDR3 Ram / 8GB Nand flash
Android 7.1 with Inspinia Application up to 1000 UI objects and 2000 BMS points
Initial license: 500 BMS points / No HVAC (VRV/VRF) point
Display
Plus icon
IPS 10′′ 1280 x 800 resolution 300 cd/m2 luminance with 5 point capacitive touchscreen
Horizontal working mode
Power Supply
Plus icon
24 VDC
POE IEEE 802.3at
Power consumption max. 14W

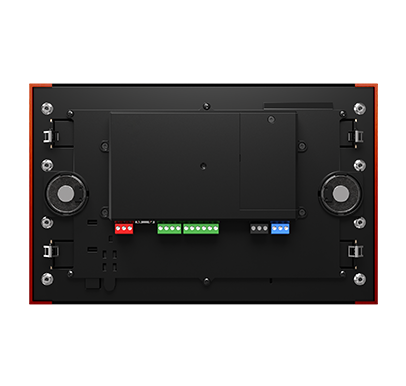

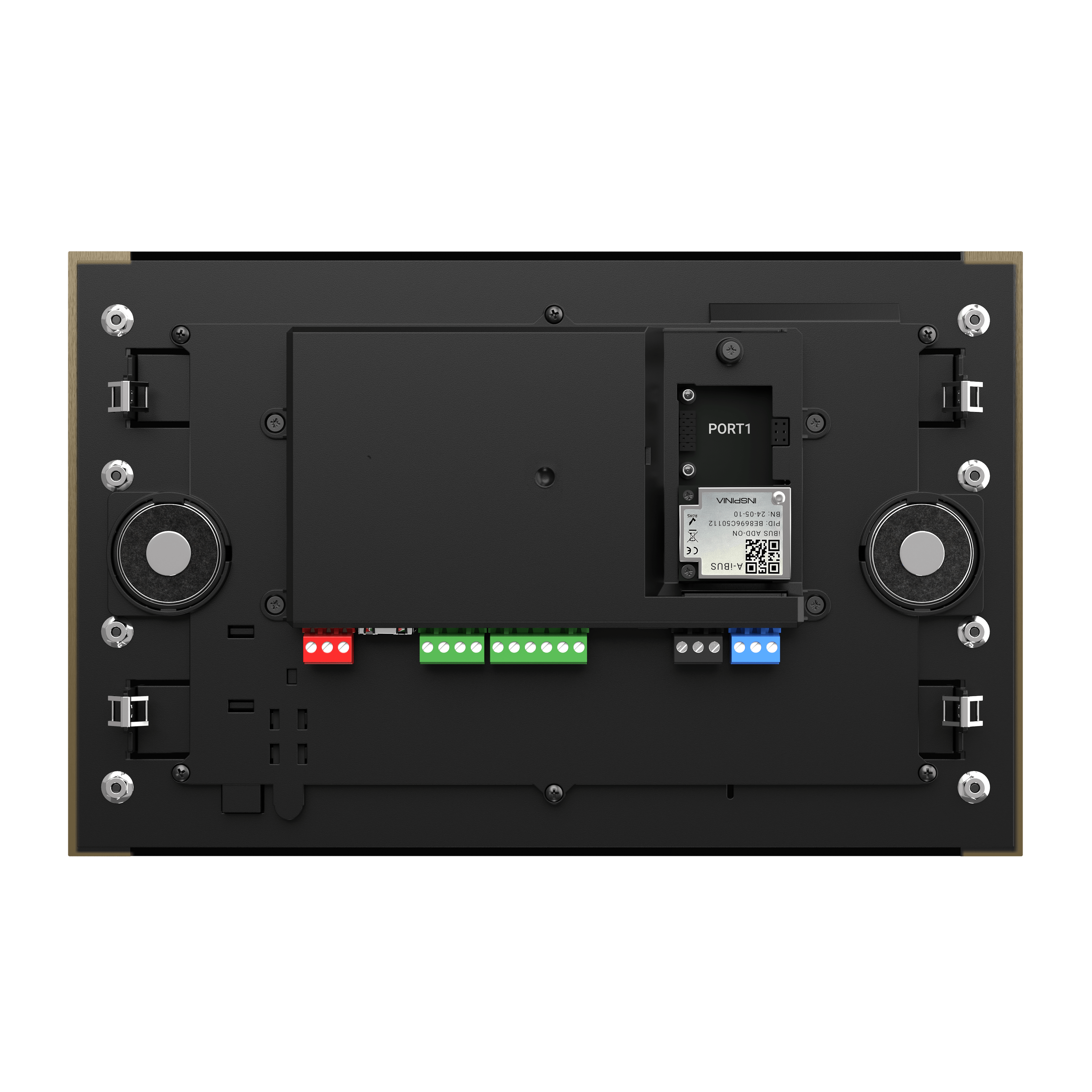

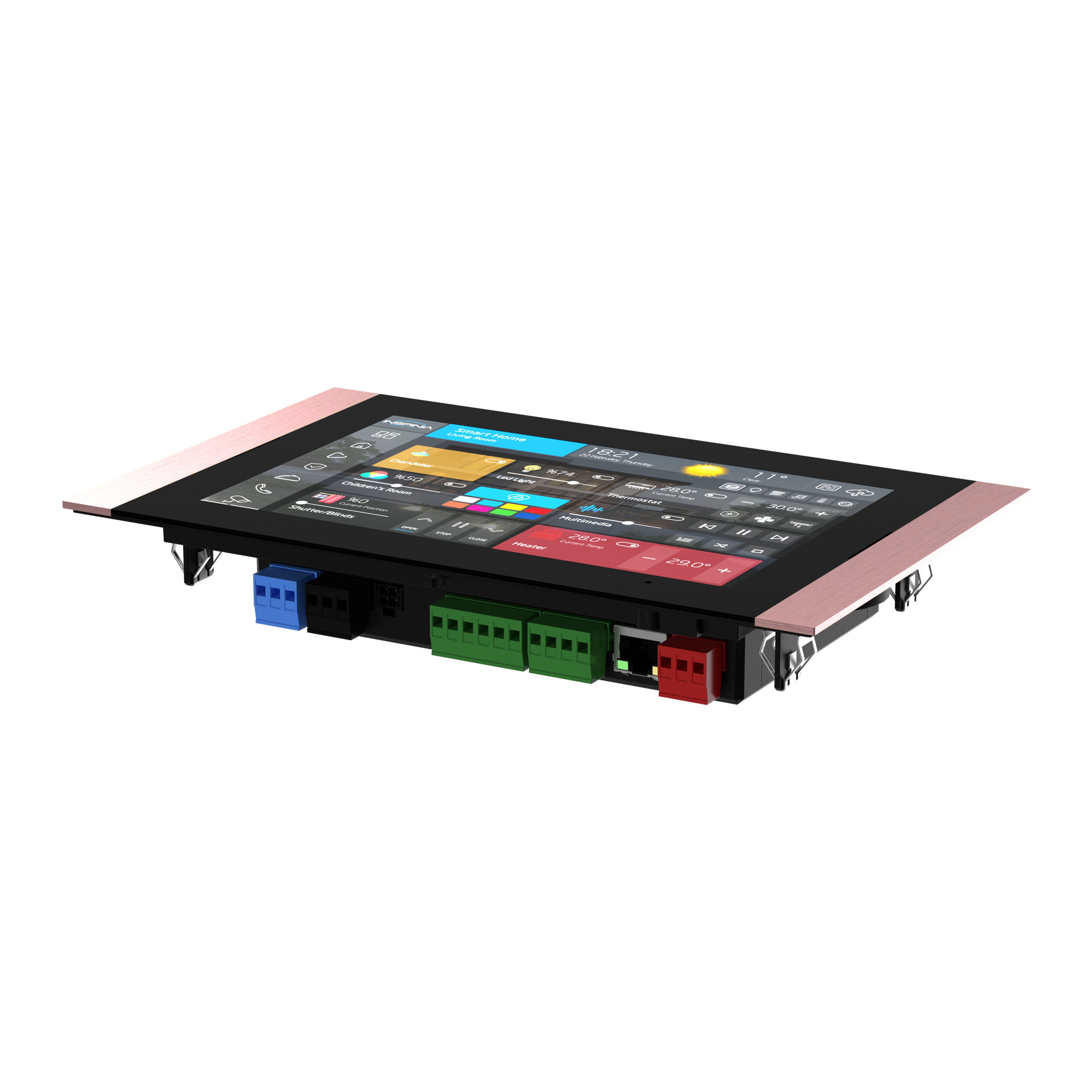

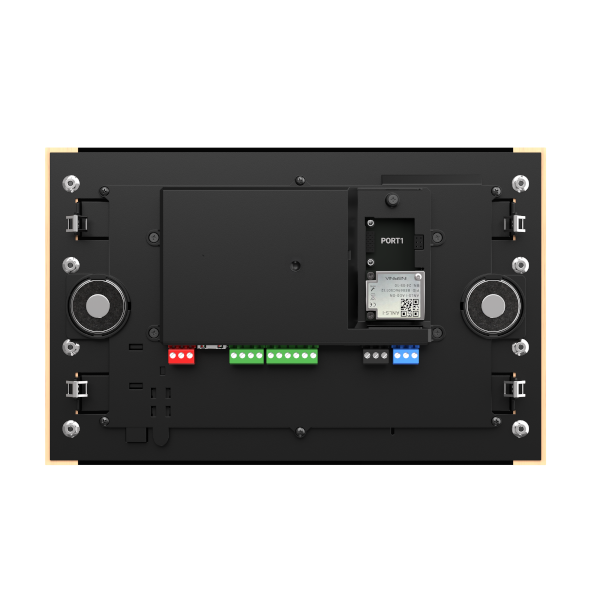

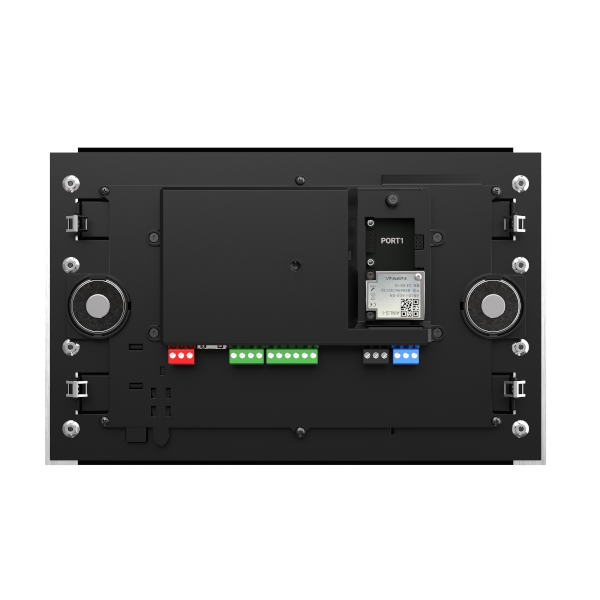

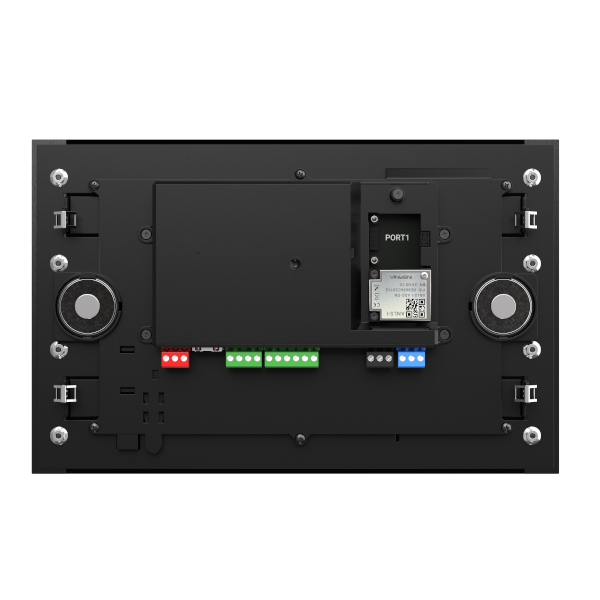

Standard Interfaces
Plus icon
1x LAN RJ45 10/100 Mbps interface

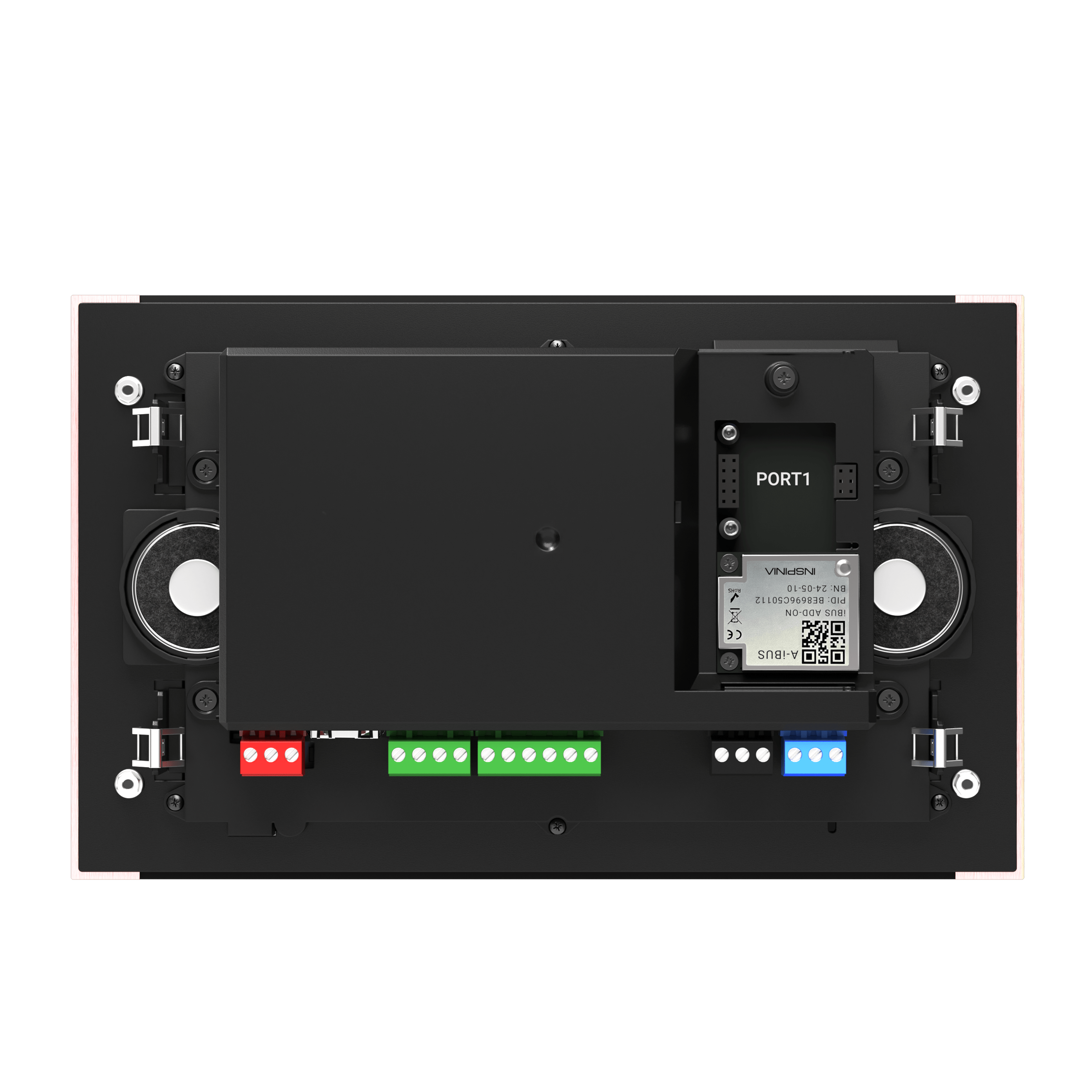

2x Add-On Ports (Optional Interface Ports)
5x Digital In
2x Digital Out (Dry Contact 2A / 24V DC)
1x Uni-port
2x 2 Watt Speakers
1x Mic Input
Built-in Sensors
Plus icon
Humidity sensor range 0% up to 100% RH
Temperature sensor range -40°C up-to +125°
Optional Interfaces
Plus icon
KNX TP (A-KNX)
Bticino (SCS) TP(A-SCS)
iNELS Bus TP (A-iBUS)
Galvanic isolated RS485 Modbus (A-GRS4)
VRF mainline communication (A-VXX)
Zigbee 3.0 (A-ZGB)
Infrared (IRGW-UP, UPort w/ 6 IR Leds)
KNX LogoVRV & VRF systems logoZigBee logoinels logoMODBUS logobticino logo
Working Temperature & Humidity
Plus icon
-10°C – +60°C
5% – 90% at 25°C
Certificates and Compatibility
Plus icon
CE marking Icon
RohHS compliant logo
